2014年03月28日,帮胖子调试毕设的程序,现象是:执行一个STM32的数学库函数(CFFT)后,进入hardfault_handler。以下描述调试流程。

  ①首先猜测,hardfault多半是非法指针导致的,检查了参数的值,发现并无异常。
  ②单步跟踪进出错的函数,发现函数体执行时没有出错,函数返回时,进入hardfault。更细粒度的跟踪时发现,在函数体内执行运算时,函数返回值保存的位置被修改,导致返回时错误。
  ③再次跟踪并观察参数、变量、寄存器的值,发现栈顶指针SP(R13)进入一个全局static数组内部,而这个全局数组正是该函数的参数之一,在执行函数体时,修改了数组内容,从而导致函数返回地址被修改。 进一步观察,发现作为该任务堆栈的数组,和作为函数参数的数组,在地址上是紧邻的(都是全局static数组,编译器在分配地址空间时自然将其紧邻放置)。而在进入任务函数后,发现栈顶指针SP反向溢出了。如下图所示:

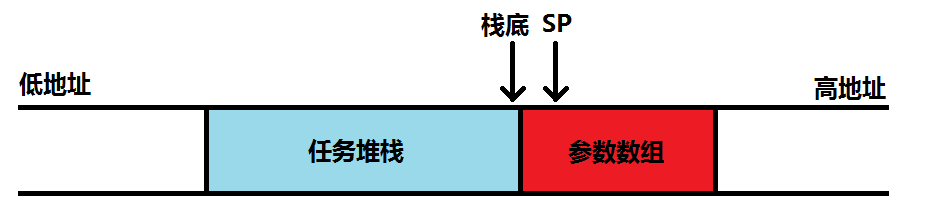

内存示意图

  ④进一步跟踪,试图找出SP是在哪一步反向溢出的。但是由于μC/OS-Ⅱ任务调度比较复杂,这一步不是很顺利。最终利用内存断点找到了任务堆栈反向溢出的位置,在文件os_cpu_a.asm的OS_CPU_PendSVHandler函数的最后一条语句:BX LR。执行BX LR之前,栈顶指针的值都是符合期望的,但执行BX LR后,PC指针切到任务函数头部执行,此时发现SP指针反向溢出了。

OS_CPU_PendSVHandler
    CPSID   I                    ; Prevent interruption during context switch
    MRS     R0, PSP              ; PSP is process stack pointer
    CBZ     R0, OS_CPU_PendSVHandler_nosave      ; Skip register save the first time

    SUBS    R0, R0, #0x20        ; Save remaining regs r4-11 on process stack
    STM     R0, {R4-R11}

    LDR     R1, =OSTCBCur        ; OSTCBCur->OSTCBStkPtr = SP;
    LDR     R1, [R1]
    STR     R0, [R1]             ; R0 is SP of process being switched out

                                 ; At this point, entire context of process has been saved
OS_CPU_PendSVHandler_nosave
    PUSH    {R14}                ; Save LR exc_return value
    LDR     R0, =OSTaskSwHook    ; OSTaskSwHook();
    BLX     R0
    POP     {R14}

    LDR     R0, =OSPrioCur       ; OSPrioCur   = OSPrioHighRdy;
    LDR     R1, =OSPrioHighRdy
    LDRB    R2, [R1]
    STRB    R2, [R0]

    LDR     R0, =OSTCBCur        ; OSTCBCur = OSTCBHighRdy;
    LDR     R1, =OSTCBHighRdy
    LDR     R2, [R1]
    STR     R2, [R0]

    LDR     R0, [R2]             ; R0 is new process SP; SP = OSTCBHighRdy->StkPtr;
    LDM     R0, {R4-R11}         ; Restore r4-11 from new process stack
    ADDS    R0, R0, #0x20
    MSR     PSP, R0              ; Load PSP with new process SP
    ORR     LR, LR, #0x04        ; Ensure exception return uses process stack
    CPSIE   I
    BX      LR                   ; Exception return will restore remaining context

    END

  ⑤查阅手册得知,BX LR指令,在LR寄存器的高16位为0xFFFF时,表示异常返回,返回方式与LR的取值有关。观察LR寄存器,发现其值为0xFFFFFFED,这种情况下,返回时出栈的栈帧大小为26个words(一个word为32位),不开启FPU的情况下是8个words。

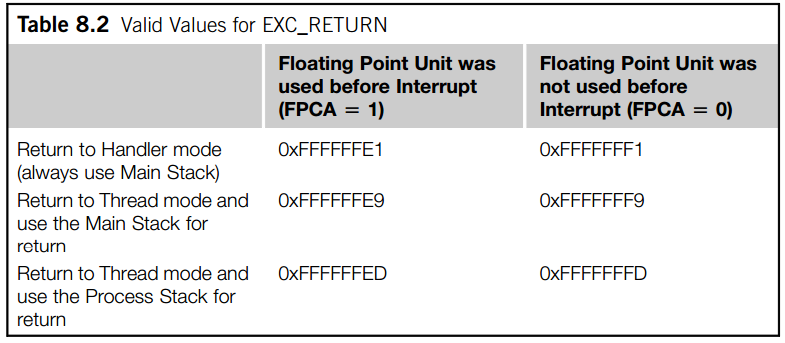

BX LR返回方式

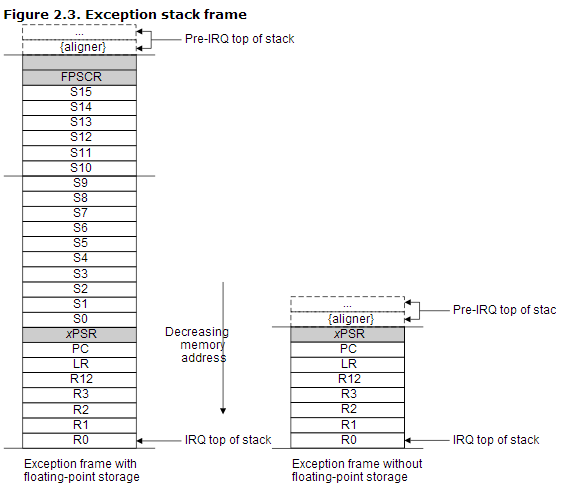

异常返回栈帧

  到此,问题基本上浮出水面了。在任务创建时,μC/OS-Ⅱ“伪造”了一个进入异常的环境,但是在构建环境时没有将FPU相关的寄存器入栈;而在任务调度时,模拟异常返回的情况,却试图在栈中取出FPU相关的寄存器的值,因此导致了栈反向溢出。 任务创建时的堆栈操作代码如下:

OS_STK *OSTaskStkInit (void (*task)(void *p_arg), void *p_arg, OS_STK *ptos, INT16U opt)
{
    OS_STK *stk;


    (void)opt;          /* 'opt' is not used, prevent warning                 */
    stk       = ptos;   /* Load stack pointer                                 */

                        /* Registers stacked as if auto-saved on exception    */
    *(stk)    = (INT32U)0x01000000uL;      // xPSR
    *(--stk)  = (INT32U)task;              // Entry Point
    *(--stk)  = (INT32U)OS_TaskReturn;     // R14 (LR)
    *(--stk)  = (INT32U)0x12121212uL;      // R12
    *(--stk)  = (INT32U)0x03030303uL;      // R3
    *(--stk)  = (INT32U)0x02020202uL;      // R2
    *(--stk)  = (INT32U)0x01010101uL;      // R1
    *(--stk)  = (INT32U)p_arg;             // R0 : argument

                                           // Remaining registers saved on process stack
    *(--stk)  = (INT32U)0x11111111uL;      // R11
    *(--stk)  = (INT32U)0x10101010uL;      // R10
    *(--stk)  = (INT32U)0x09090909uL;      // R9
    *(--stk)  = (INT32U)0x08080808uL;      // R8
    *(--stk)  = (INT32U)0x07070707uL;      // R7
    *(--stk)  = (INT32U)0x06060606uL;      // R6
    *(--stk)  = (INT32U)0x05050505uL;      // R5
    *(--stk)  = (INT32U)0x04040404uL;      // R4

    return (stk);
}

  找到问题后,只需要在创建任务和异常返回时加上FPU寄存器的保护与恢复即可。分别修改函数OSTaskStkInit与OS_CPU_PendSVHandler如下:

OS_STK *OSTaskStkInit (void (*task)(void *p_arg), void *p_arg, OS_STK *ptos, INT16U opt)
{
    int i = 0;
    OS_STK *stk;
    (void)opt;          /* 'opt' is not used, prevent warning                 */

#if (__FPU_PRESENT == 1) && (__FPU_USED == 1)

    stk       = ptos;   /* Load stack pointer                                 */

                        /* Registers stacked as if auto-saved on exception    */

    *(stk)    = (INT32U)0x00000000uL;
    *(--stk)  = (INT32U)0x00000000uL;

    for (i = 0; i < 16; ++i)
    {
        *(--stk) = (INT32U)(0x00000000uL);
    }

    *(--stk)  = (INT32U)0x01000000uL;      // xPSR
    *(--stk)  = (INT32U)task;              // Entry Point
    *(--stk)  = (INT32U)OS_TaskReturn;     // R14 (LR)
    *(--stk)  = (INT32U)0x12121212uL;      // R12
    *(--stk)  = (INT32U)0x03030303uL;      // R3
    *(--stk)  = (INT32U)0x02020202uL;      // R2
    *(--stk)  = (INT32U)0x01010101uL;      // R1
    *(--stk)  = (INT32U)p_arg;             // R0 : argument

                                           // Remaining registers saved on process stack
    *(--stk)  = (INT32U)0x11111111uL;      // R11
    *(--stk)  = (INT32U)0x10101010uL;      // R10
    *(--stk)  = (INT32U)0x09090909uL;      // R9
    *(--stk)  = (INT32U)0x08080808uL;      // R8
    *(--stk)  = (INT32U)0x07070707uL;      // R7
    *(--stk)  = (INT32U)0x06060606uL;      // R6
    *(--stk)  = (INT32U)0x05050505uL;      // R5
    *(--stk)  = (INT32U)0x04040404uL;      // R4

    for (i = 0; i < 16; ++i)
    {
        *(--stk) = (INT32U)(0x00000000uL);
    }

#else

    stk       = ptos;   /* Load stack pointer                                 */

                        /* Registers stacked as if auto-saved on exception    */
    *(stk)    = (INT32U)0x01000000uL;      // xPSR
    *(--stk)  = (INT32U)task;              // Entry Point
    *(--stk)  = (INT32U)OS_TaskReturn;     // R14 (LR)
    *(--stk)  = (INT32U)0x12121212uL;      // R12
    *(--stk)  = (INT32U)0x03030303uL;      // R3
    *(--stk)  = (INT32U)0x02020202uL;      // R2
    *(--stk)  = (INT32U)0x01010101uL;      // R1
    *(--stk)  = (INT32U)p_arg;             // R0 : argument

                                           // Remaining registers saved on process stack
    *(--stk)  = (INT32U)0x11111111uL;      // R11
    *(--stk)  = (INT32U)0x10101010uL;      // R10
    *(--stk)  = (INT32U)0x09090909uL;      // R9
    *(--stk)  = (INT32U)0x08080808uL;      // R8
    *(--stk)  = (INT32U)0x07070707uL;      // R7
    *(--stk)  = (INT32U)0x06060606uL;      // R6
    *(--stk)  = (INT32U)0x05050505uL;      // R5
    *(--stk)  = (INT32U)0x04040404uL;      // R4

#endif

    return (stk);
}
OS_CPU_PendSVHandler
    CPSID   I                    ; Prevent interruption during context switch
    MRS     R0, PSP              ; PSP is process stack pointer
    CBZ     R0, OS_CPU_PendSVHandler_nosave      ; Skip register save the first time

    SUBS    R0, R0, #0x20        ; Save remaining regs r4-11 on process stack
    STM     R0, {R4-R11}

#if (__FPU_PRESENT == 1) && (__FPU_USED == 1)
    SUB     R0, R0, #0x40
    VSTM    R0, {D8-D15}
#endif

    LDR     R1, =OSTCBCur        ; OSTCBCur->OSTCBStkPtr = SP;
    LDR     R1, [R1]
    STR     R0, [R1]             ; R0 is SP of process being switched out

                                 ; At this point, entire context of process has been saved
OS_CPU_PendSVHandler_nosave
    PUSH    {R14}                ; Save LR exc_return value
    LDR     R0, =OSTaskSwHook    ; OSTaskSwHook();
    BLX     R0
    POP     {R14}

    LDR     R0, =OSPrioCur       ; OSPrioCur   = OSPrioHighRdy;
    LDR     R1, =OSPrioHighRdy
    LDRB    R2, [R1]
    STRB    R2, [R0]

    LDR     R0, =OSTCBCur        ; OSTCBCur = OSTCBHighRdy;
    LDR     R1, =OSTCBHighRdy
    LDR     R2, [R1]
    STR     R2, [R0]

    LDR     R0, [R2]             ; R0 is new process SP; SP = OSTCBHighRdy->StkPtr;

#if (__FPU_PRESENT == 1) && (__FPU_USED == 1)
    VLDM    R0, {D8-D15}
    ADD     R0, R0, #0x40
#endif

    LDM     R0, {R4-R11}         ; Restore r4-11 from new process stack
    ADDS    R0, R0, #0x20

#if (__FPU_PRESENT == 1) && (__FPU_USED == 1)
    BIC.W   LR, LR, #0x10
#endif

    MSR     PSP, R0              ; Load PSP with new process SP
    ORR     LR, LR, #0x04        ; Ensure exception return uses process stack
    CPSIE   I
    BX      LR                   ; Exception return will restore remaining context

    END

###References

Making the best use of the available breakpoints
M4在IAR环境下移植ucosii问题
Cortex-M4 Device Generic User Guide: Exception entry and return
移植ucos2 到 STMF4 支持浮点,一点心得
The Definitive Guide to ARM Cortex-M3 and Cortex-M4 Processors
